Real outputs, refined by chat
Every result below is a genuine AiCADGen generation. Describe it, look at it, tell it what to fix, regenerate — then export real CAD files.

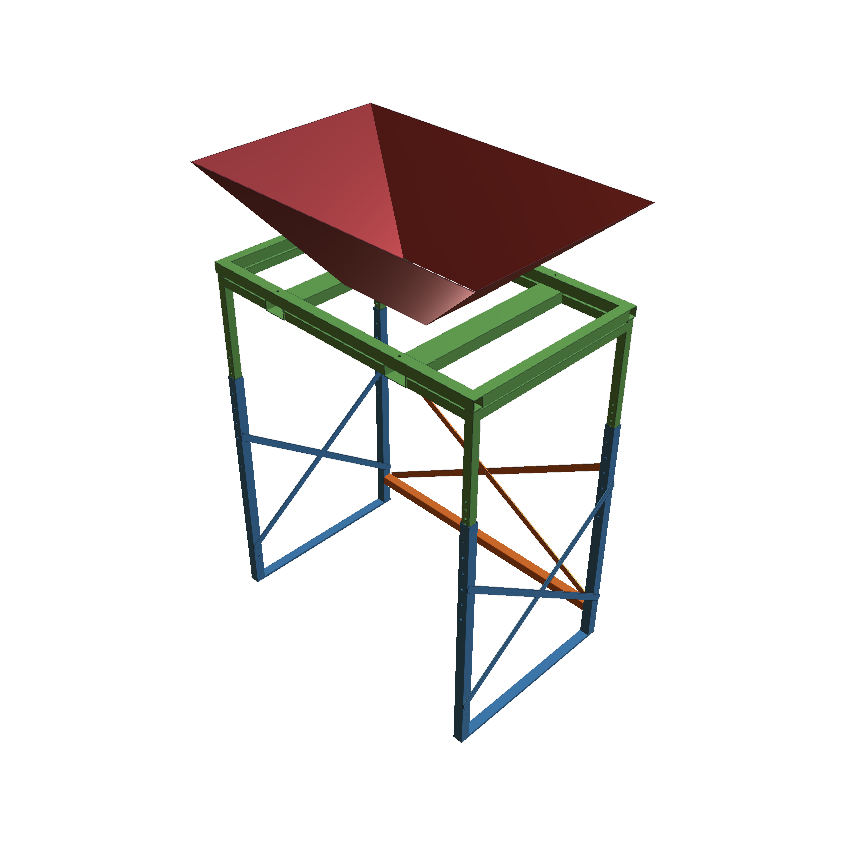

CAD Assembly$Multi-part bulk bag filling frame, 1800×1150mm footprint, 2195mm high — floor skids, SHS legs, X-bracing, telescoping hopper section, each member its own part

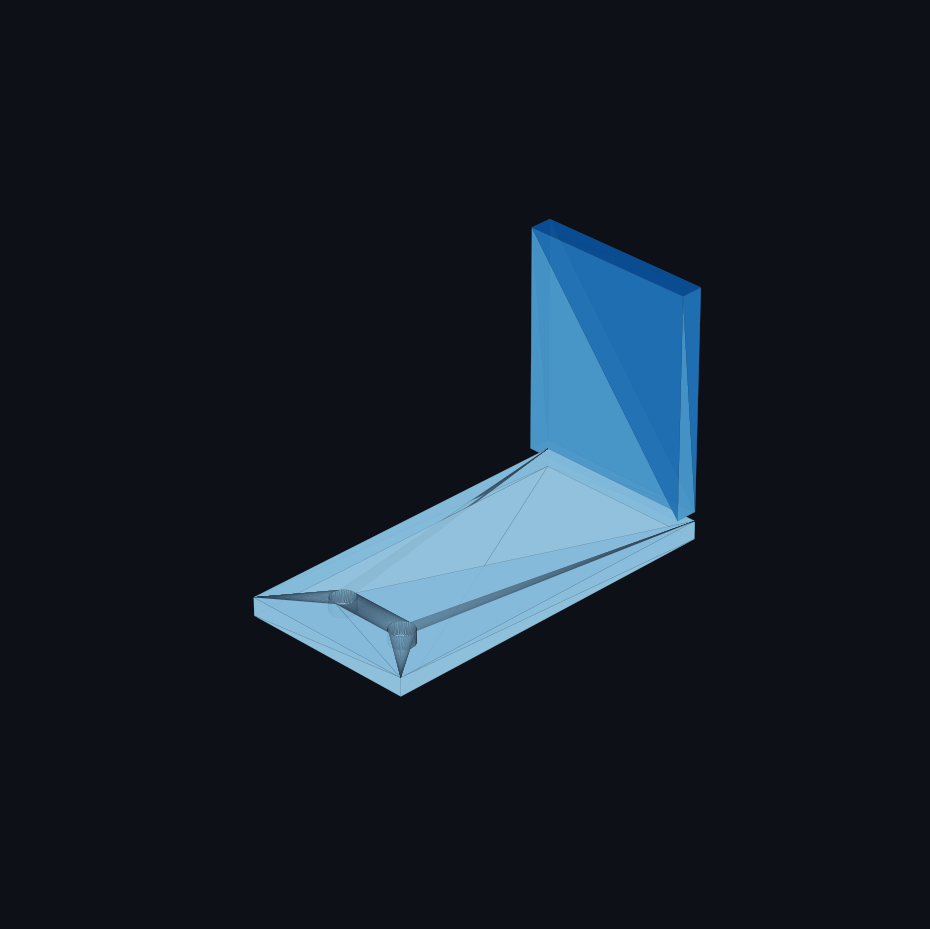

CAD Part$L-bracket 80×60mm, 5mm thick, 4× M5 mounting holes, R3 inside fillet

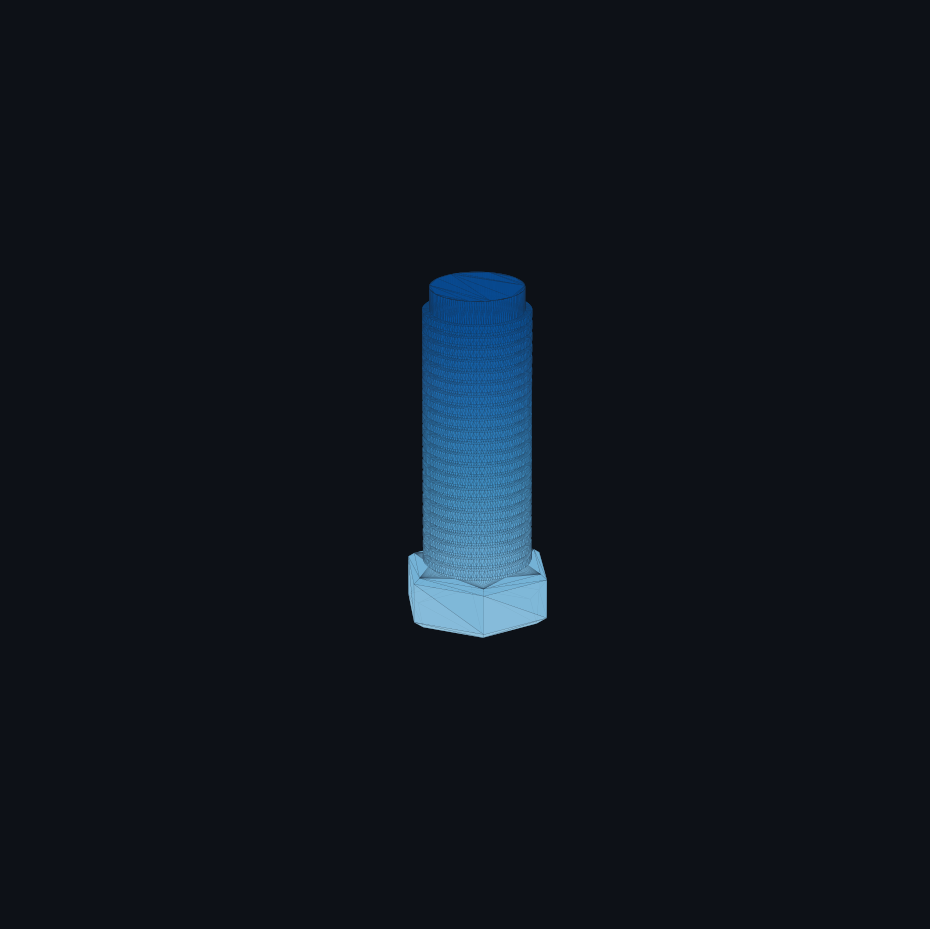

CAD Part$M8 hex head bolt, 30mm long, 13mm across flats, steel

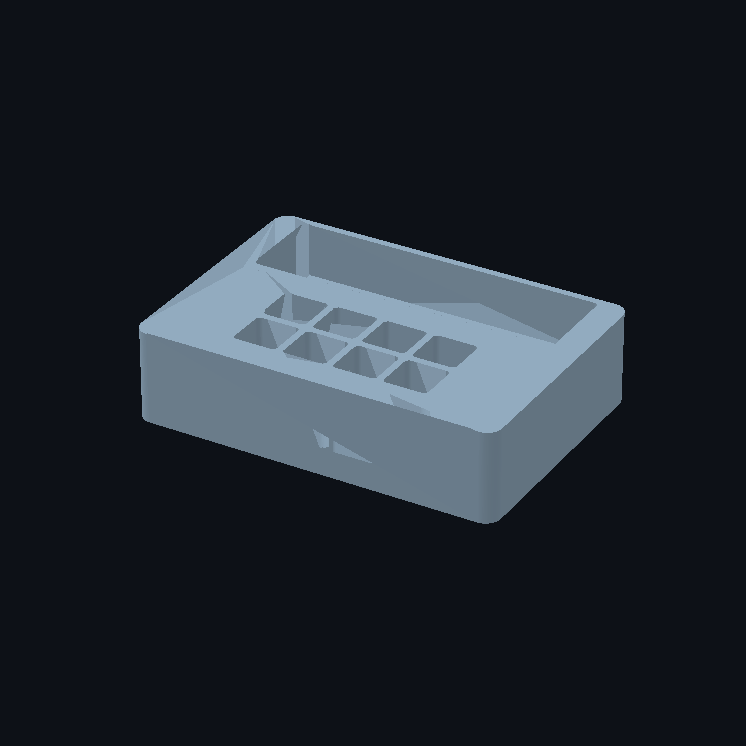

CAD Part$Open-top jewelry organizer box, 200×140×50mm, 8 ring slots + watch/bracelet tray
CAD Part$Quadcopter drone frame, X-config, 4× motor mounts, weight-reduction cutouts

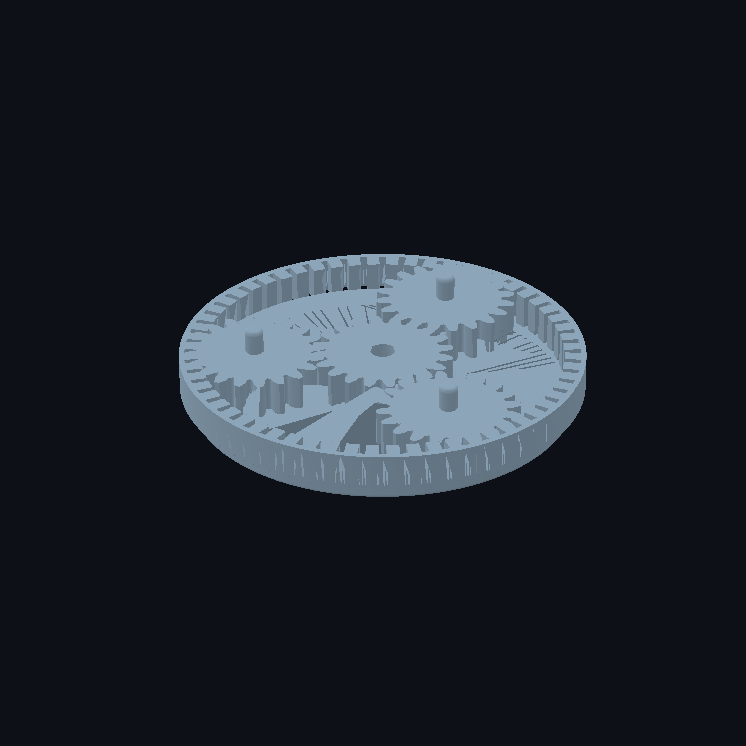

CAD Part$Planetary gearbox, module 1.5mm involute spur gears, 4:1 ratio

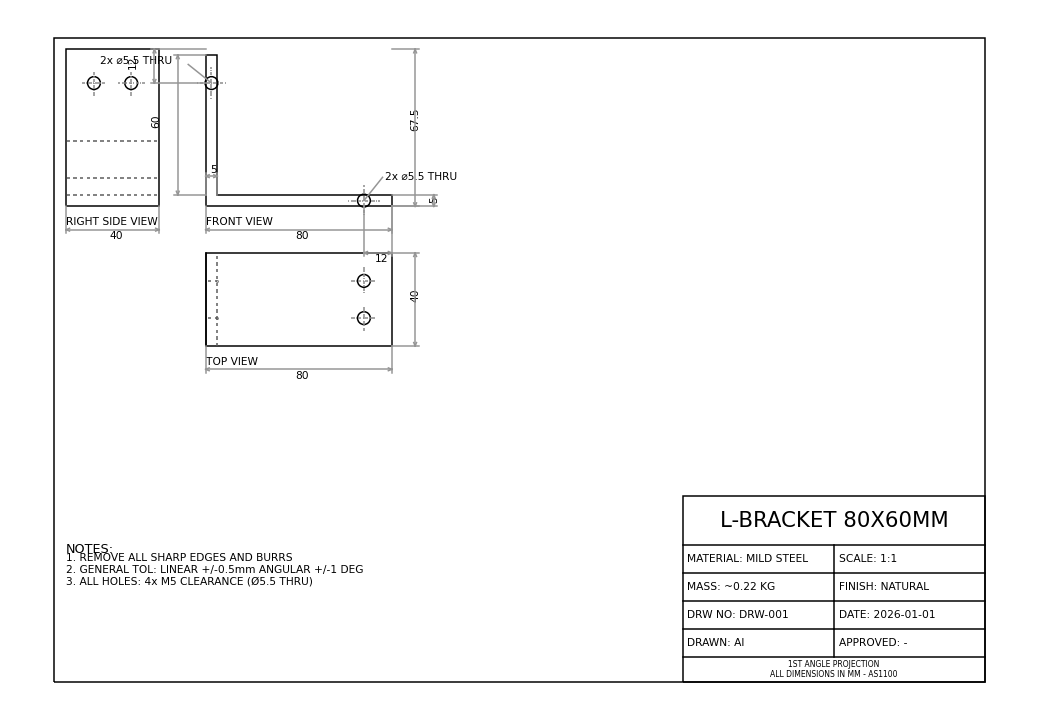

Drawing$L-bracket detail drawing, fully dimensioned, AS1100 title block

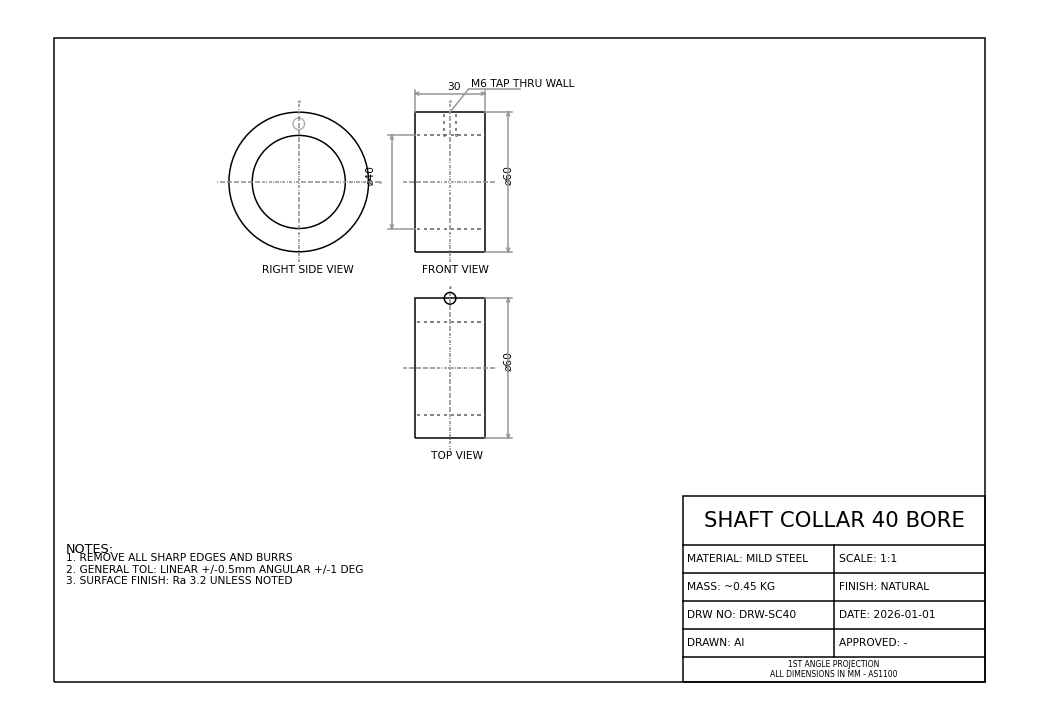

Drawing$Shaft collar 40mm bore, 60mm OD, M6 grub screw — AS1100
Drawing · Sheet 2$Shaft collar — section view + detail callouts, sheet 2
Gate · DXF$Sliding driveway gate 4.2m, 50×50 SHS frame, vertical infill

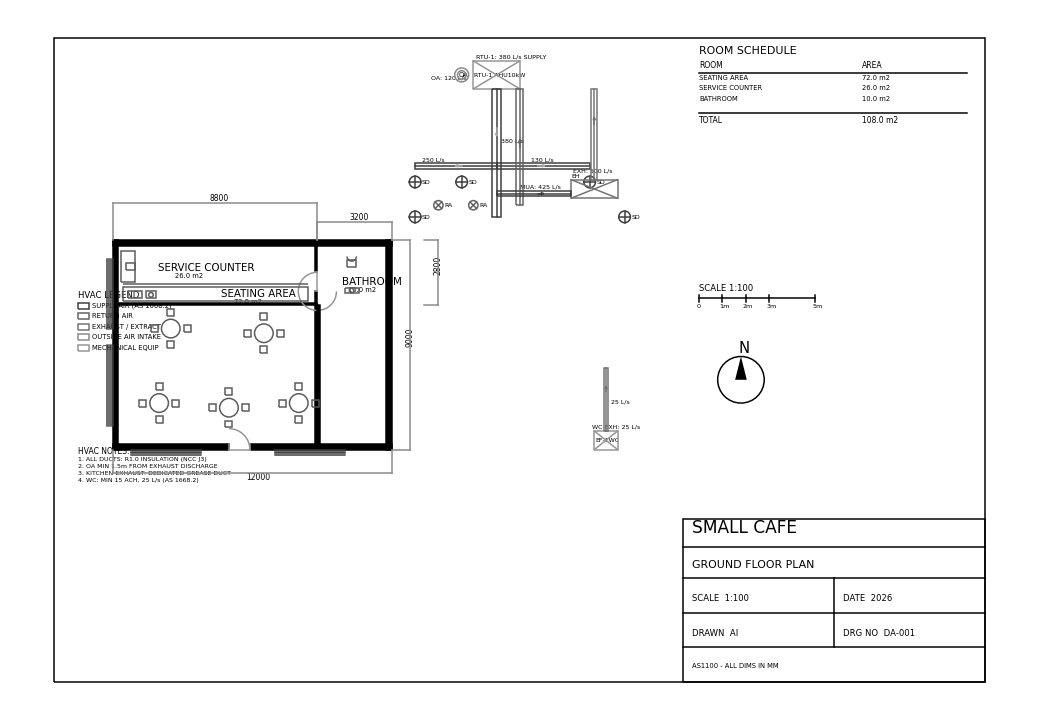

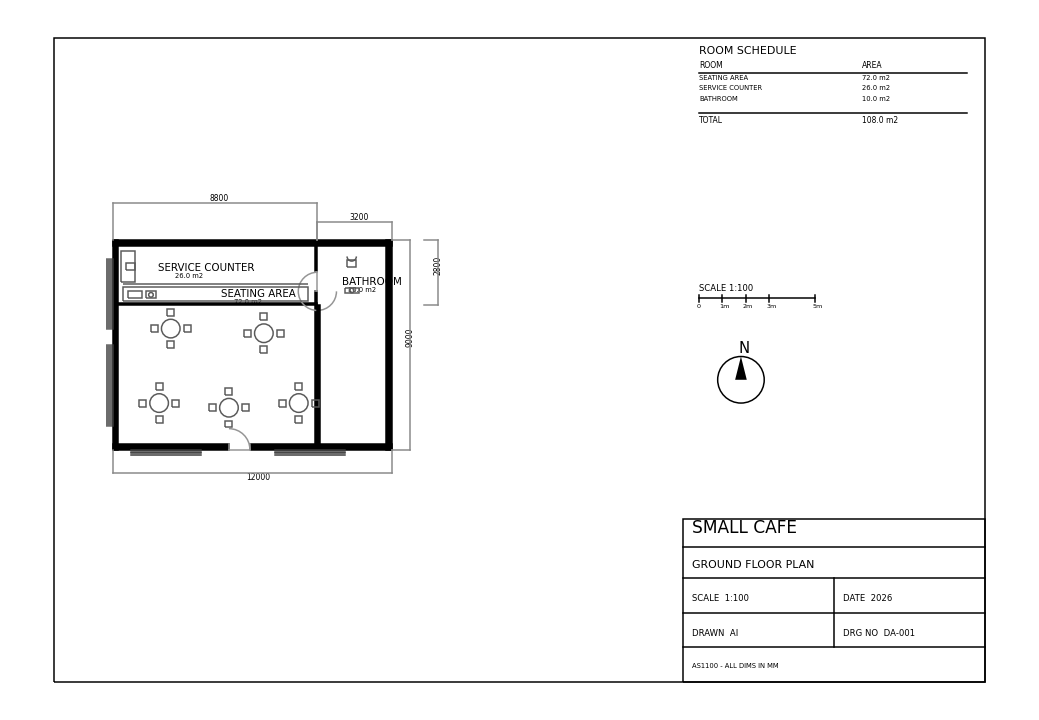

Floor Plan$Café floor plan 90m², 24 covers, accessible WC, back-of-house
Floor Plan$3-bed single-storey house, 180m², double garage, north living
Your design is one prompt away
Memberships from $5/mo, cancel anytime. Export STEP, STL, DXF — bring your design to life.
